PrimeCure® 385 nm QX4® LED Head/Wand

By Dymax

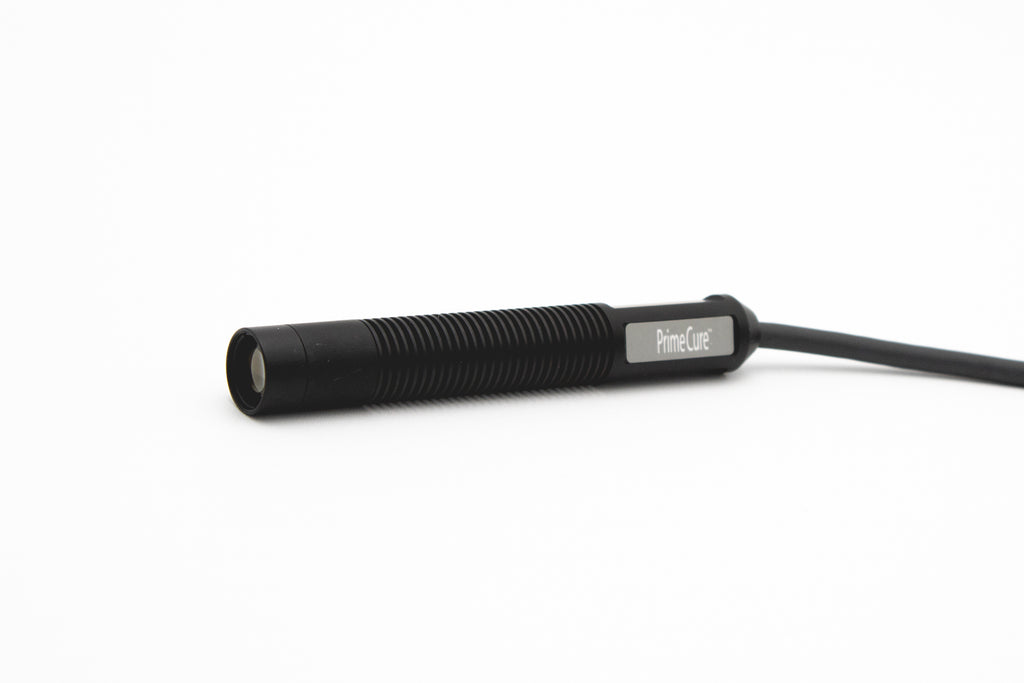

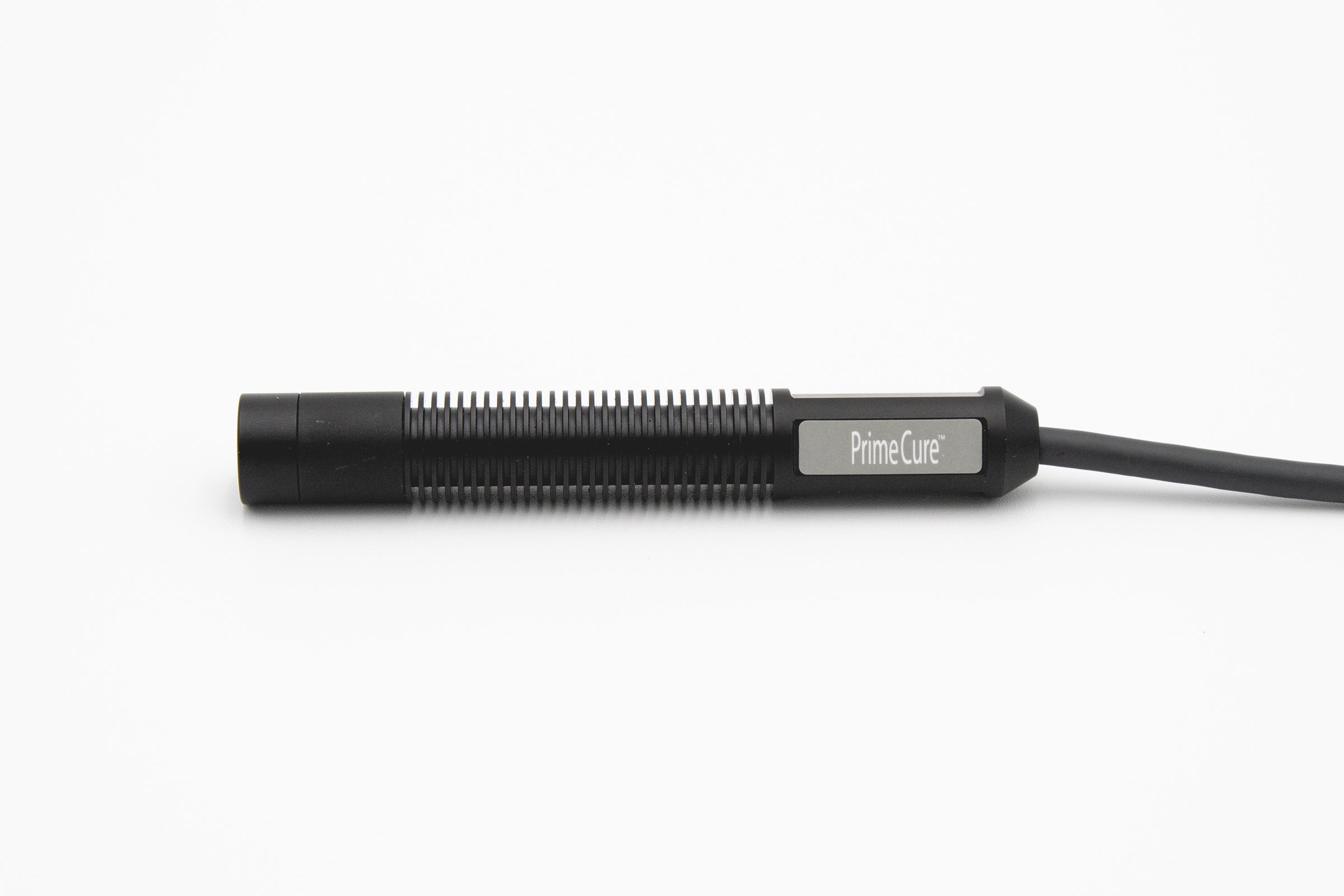

Dymax PrimeCure® 385 nm LED Head/Wand – For BlueWave® QX4® V2.0 Spot-Curing System

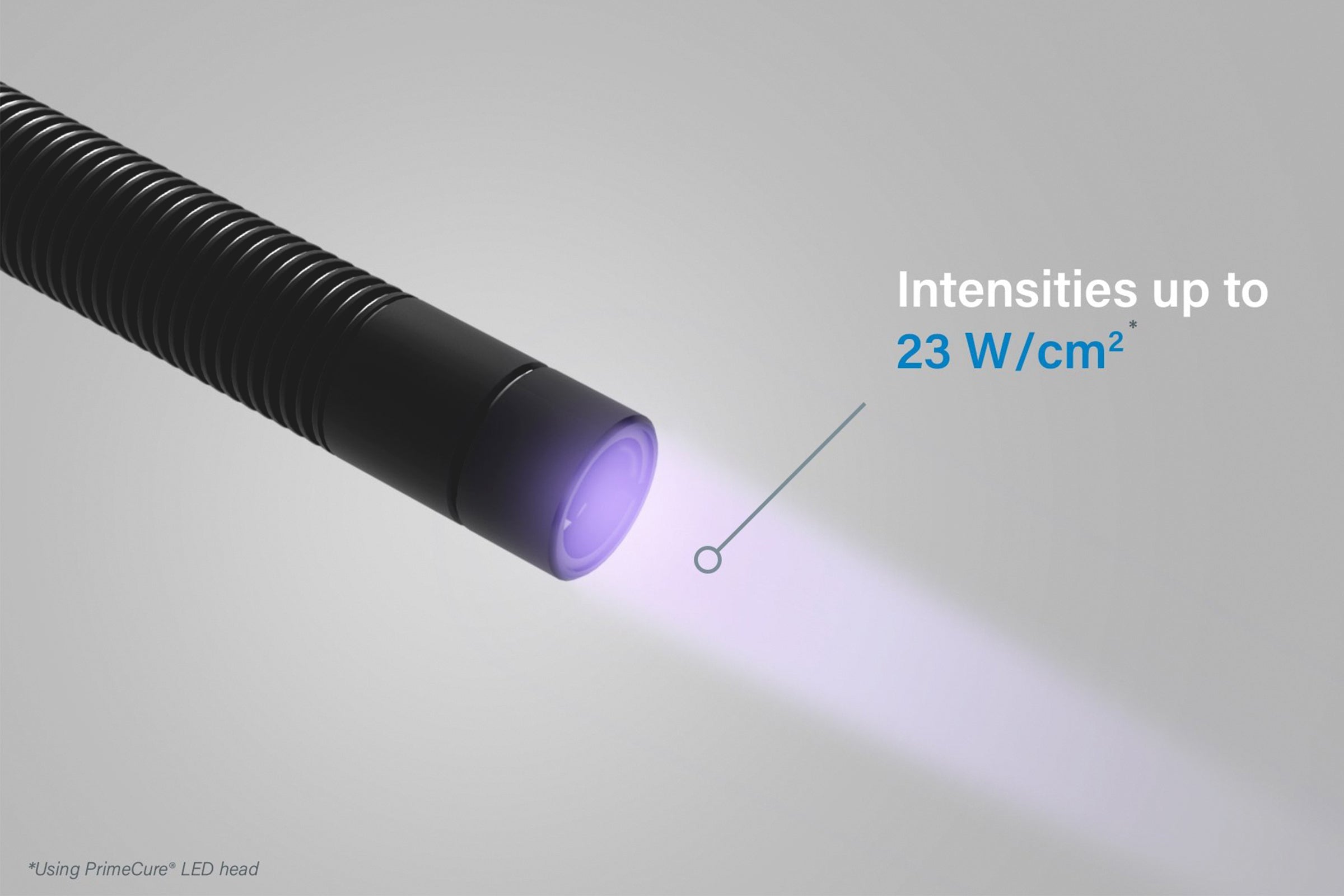

Engineered for precision and performance, the Dymax PrimeCure® 385 nm LED Head/Wand is a powerful component of the BlueWave® QX4® V2.0 LED Spot-Curing System. This high-intensity LED head delivers targeted light energy at 385 nm for fast, efficient curing of compatible materials.

Designed with flexibility in mind, the LED is installed directly at the end of the wand, enabling accurate and focused light delivery—ideal for tight spaces and complex geometries. The compact form factor allows mounting close to components, supporting 360° curing even in hard-to-reach areas.

Each wand can be controlled independently through the QX4® system’s variable mode, with intensity and exposure time adjustable in 1% increments. This level of control ensures consistent, high-quality cures tailored to your specific application needs.

Key Features:

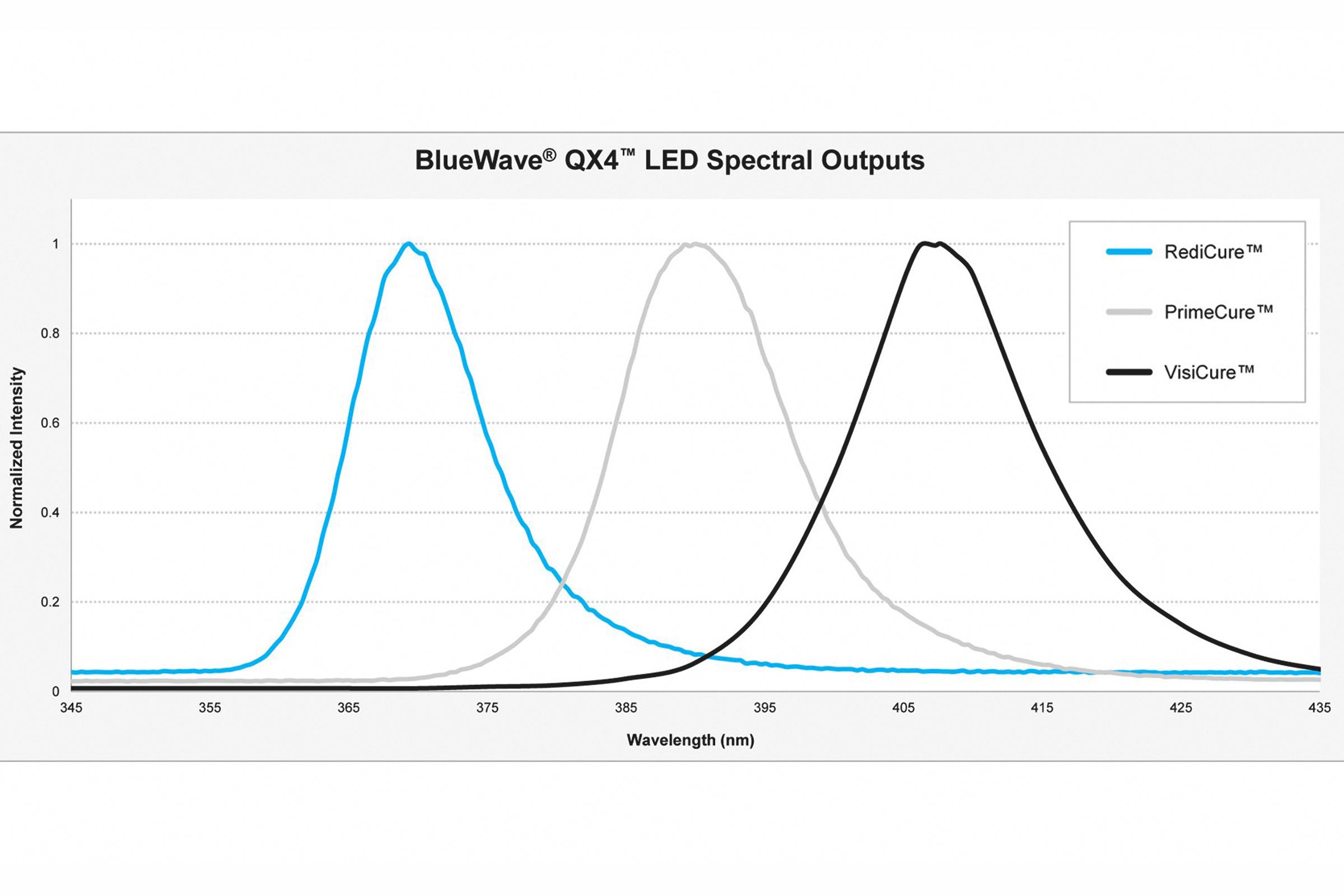

  • Wavelength: 385 nm for compatibility with a wide range of light-curable adhesives and coatings
  • Independent Control: Each wand can be programmed individually for cycle time and intensity
  • Precision Placement: LED placement at the tip allows for exact light delivery and component proximity

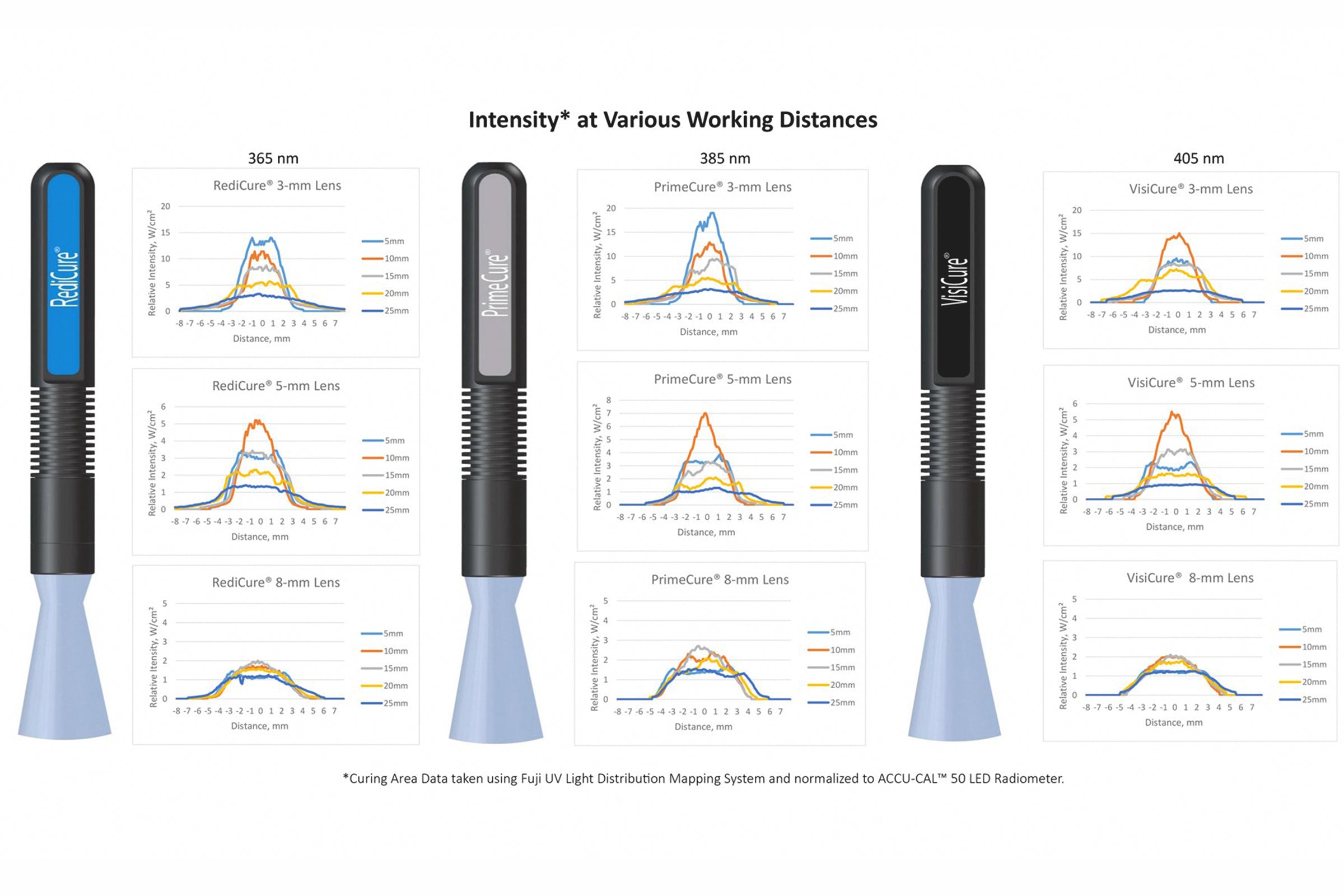

  • Flexible Configurations: Compatible with interchangeable 3 mm, 5 mm, and 8 mm focusing lenses (sold separately)
  • Expandable System: Supports up to four LED heads operated in unison or independently
  • Ideal for Complex Assemblies: Enables 360° curing of challenging geometries and small components



Note: Controller and focusing lenses are sold separately. Compatible with Dymax BlueWave® QX4® V2.0 system.

Dymax Equipment Sales Terms

Tariff Notice: Price includes mandatory Dymax Tariffs on goods starting 04/15/25.  This is a temporary tariff and is subject to future adjustment based on economic conditions.

$1,430.00
