215-CTH-SV01-UR-SC | UV Adhesive

Dymax MD® 215-CTH-SV01-UR-SC is a high-performance, LED-curable medical adhesive formulated for bonding challenging catheter components and other next-generation medical device assemblies. Powered by Encompass® Technology, it combines Dymax’s patented See-Cure® and Ultra-Red® technologies for full visual cure confirmation throughout production.

Upon dispensing, the adhesive appears blue, aiding precise placement. Once fully cured under UV/visible light (preferably 385 nm LED), it turns clear—visually verifying cure completion. After curing, it fluoresces bright red under low-intensity black light, making post-cure inspection easy, even on substrates like PVC that naturally fluoresce blue.

Free of solvents and nonreactive until exposed to light, MD® 215-CTH-SV01-UR-SC delivers rapid cure speeds, higher yields, and reduced production costs—ideal for high-throughput medical manufacturing.

• UV/Visible Light Cure
• LED Curable (Optimized for 385 nm)
• See-Cure® Technology – Blue to Clear Transition
• Ultra-Red® Fluorescing – Bright Red Post-Cure Inspection
• Designed for Difficult-to-Bond Plastics
• Solvent-Free & Low Odor
• RoHS 2015/863/EU Compliant

• Balloon/Lumen Assembly
• Hub/Lumen Bonding
• Marker Band Adhesive
• Manifold Bond Joints
• Catheter Assembly

• Viscosity: 1,000 cP
• Durometer: D53
• Tensile at Break: 11.7 MPa
• Elongation at Break: 300%
• Modulus of Elasticity: 410 MPa

• PA (Nylon 6, Nylon 12)
• PEBA
• PET
• TPU

• ISO 10993-4 Hemolysis
• ISO 10993-5 Cytotoxicity
• ISO 10993-6 Implantation
• ISO 10993-10 Intracutaneous
• ISO 10993-11 Systemic Toxicity

• PDS: 215-CTH-SV01-UR-SC
• Dymax Equipment Sales Terms

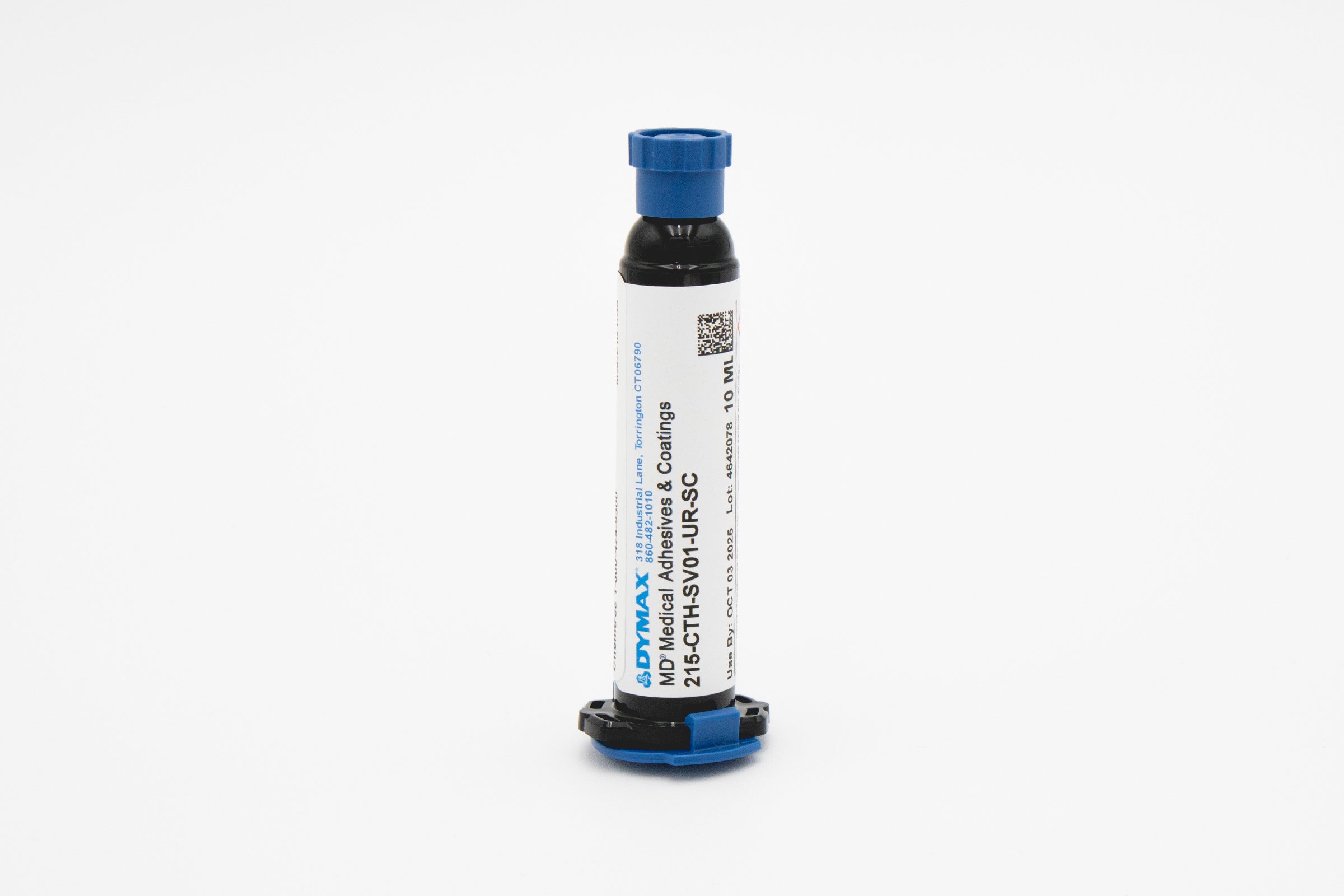

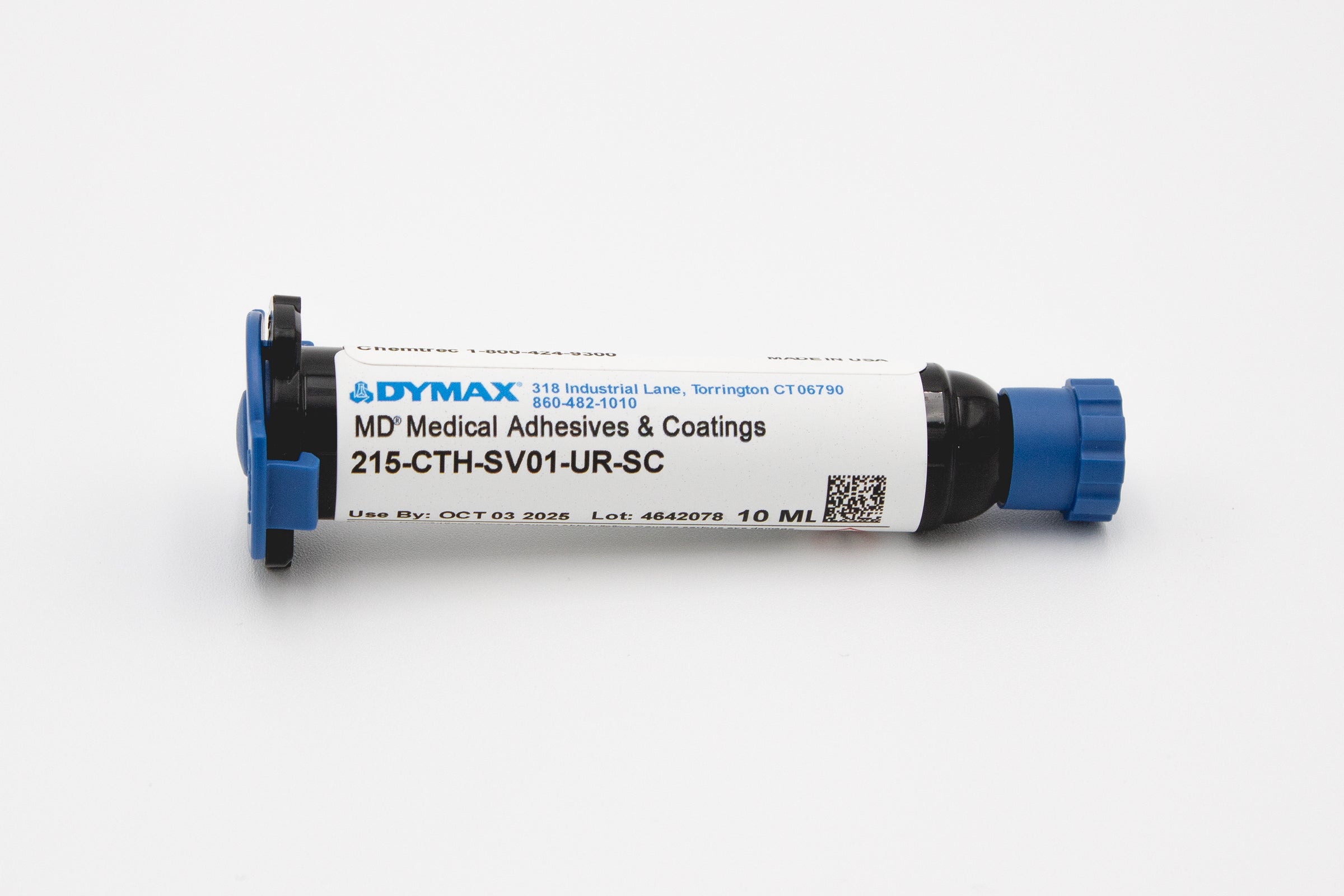

Packaging: 10cc/10ml Syringe

NOTE: Product will ship no less than 30 Days Shelf Life.
